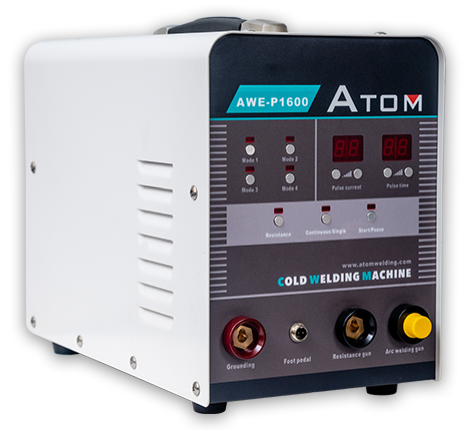

AWE-P1600

Intelligent precision welding machine (Cold welding machine)

Easy to handle thin sheet welding

The best tool for thin sheet welding, low heat input, no distortion

ATOM AWE-P1600 intelligent precision welding machine (Cold welding machine) is

widely used for welding stainless steel / color steel / mild steel / copper / carbon steel etc

It is very friendly for new users, very simple to use.

Watch demo video

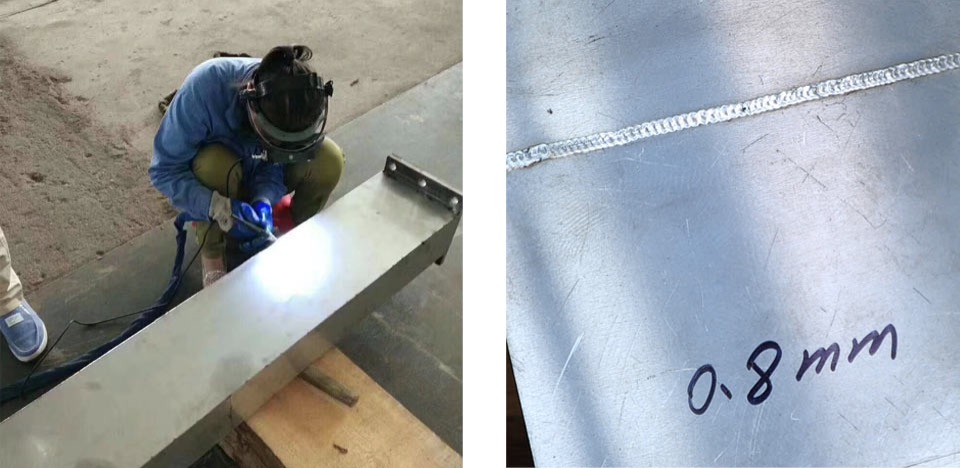

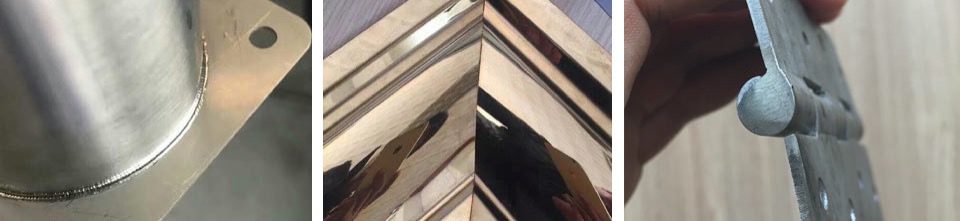

AWE-P1600 can weld minimum 0.2mm sickness SS sheet without distortion

0.2MM

The heat input of AWE-P1600 welding machine is very small, so it can easily and

accurately weld tiny parts and thin sheet without distortion.

​

Clean welding surface, no need grinding after welding, no undercut, no porosity.

Very easy to operate and very friendly for new users.

​

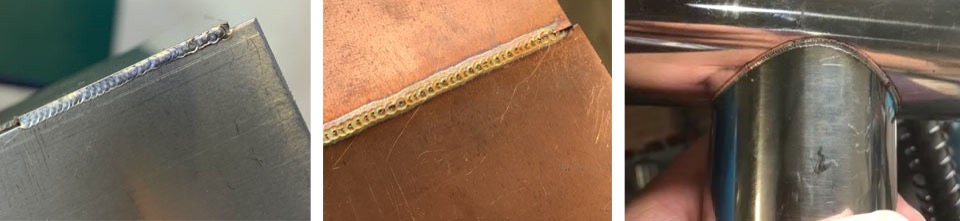

Can weld different hardness ferro and non-ferro together.

(such as: stainless steel and brass)

​

Can weld thickness range from 0.2mm to 4.0mm.

Suitable for Stainless steel/Mild steel/Carbon steel/Brass/Silver etc.

AWE-P1600 - The best tool for thin sheet welding

Cold welding process is using the high-energy power stored and release instantly between tungsten and workpiece, through air ionization channels formed an instant high temperature and high pressure region. Due to this process is finished within several millisecond so heat affected zone is very small, it can perfectly finish welding with minimum heat input to avoid distortion and undercut, especially for thin sheet welding.

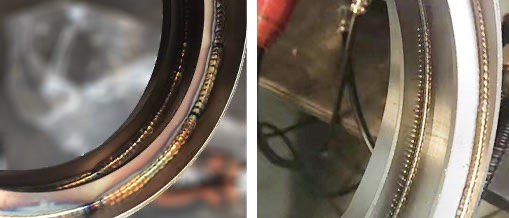

Traditional TIG welding heat input is very high, welding surface is back, difficult to weld thin sheet. Cold welding surface is clean, no need grinding.

Traditional TIG welding

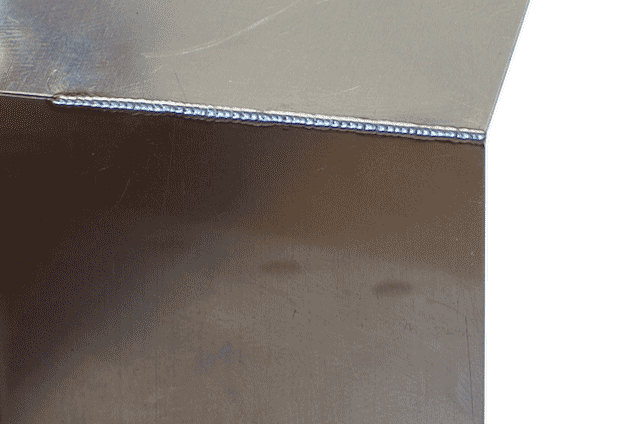

AWE-P1600 welding

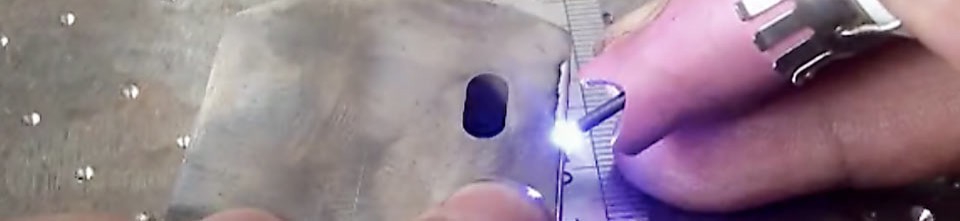

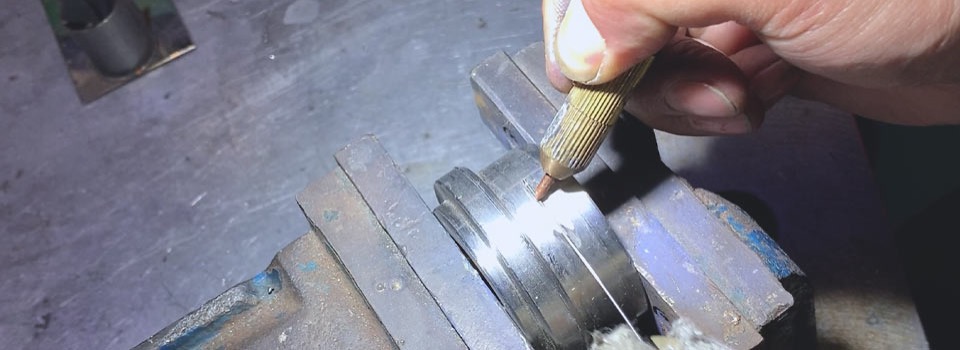

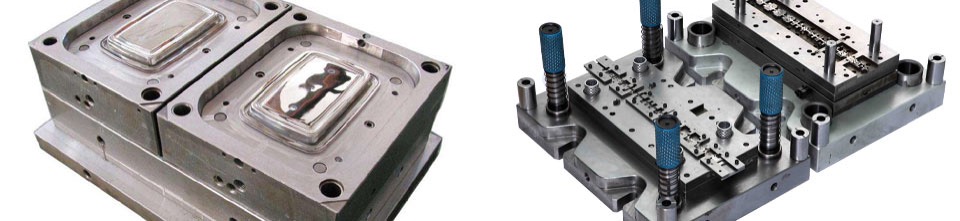

AWE-P1600 cold welding machine is also a good tool for steel mold repair.

It can repair all kinds of wear and tear problems on steel mold.

Low heat input can avoid annealing and distortion, and keep the mechanical structure unchanged.

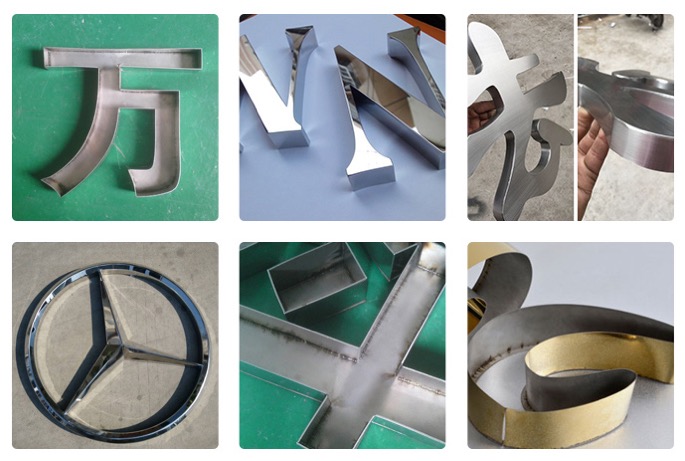

For channel letter welding

We also design a special welding gun for stainless steel channel letter welding. Very convenient to use, easy to hold, simplify the operation process for outdoor channel letter welding.

Your best tool for channel letter welding.

*Channel letter welding gun is an optional accessory, it needs to be purchased separately if necessary.

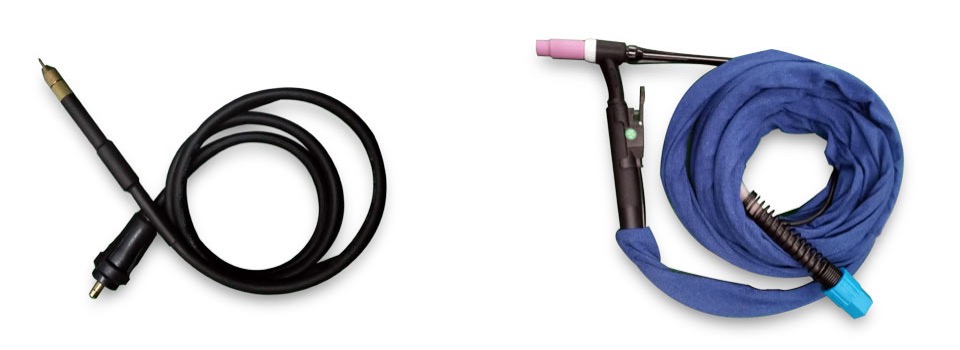

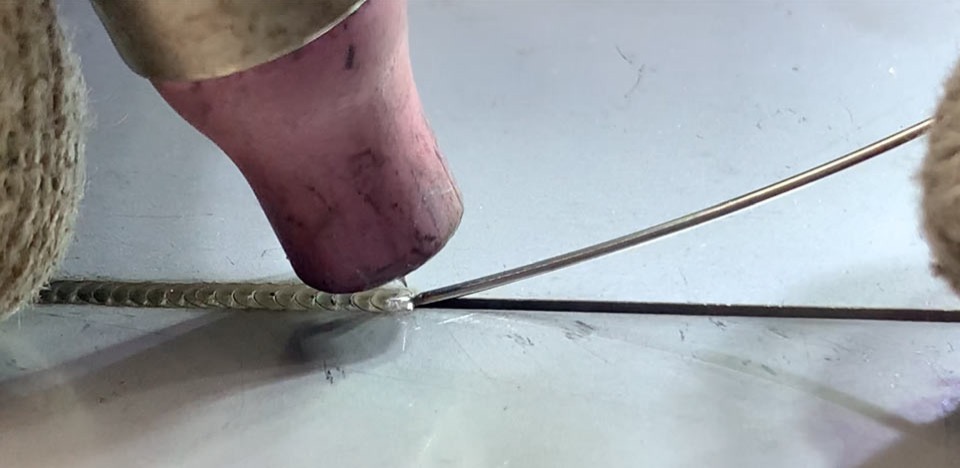

RESISTANCE WELDIN GUN

​

Help to fix welding wire to the right position,

Free your other hand, simple and convenience.

RESISTANCE GUN

ARC WELDING GUN

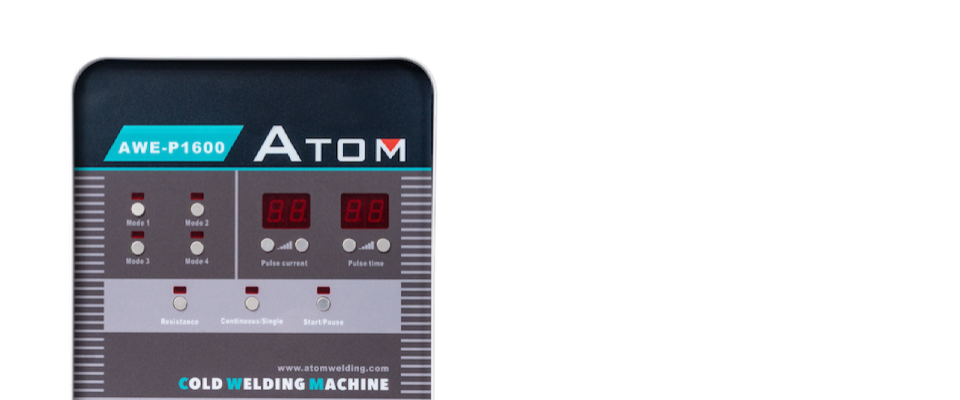

Easy set up

​

4 quick setting modes easy to switch from different thickness materials.

Support single mode and continuous mode (continuous spot output) improve welding speed and efficiency.

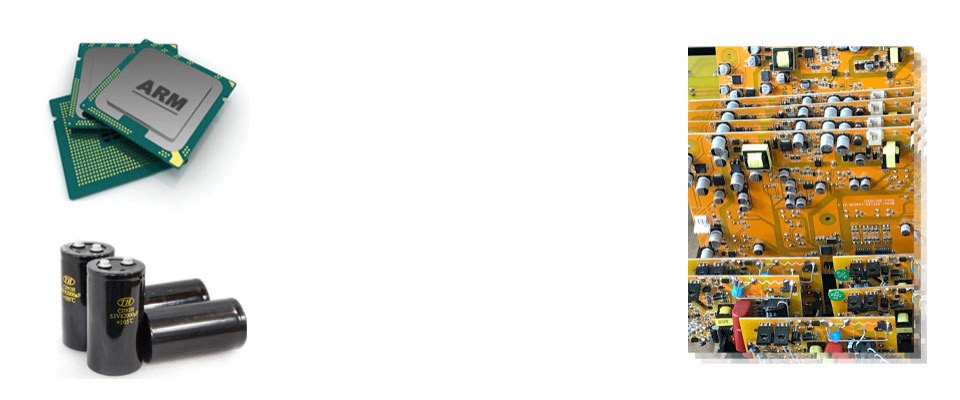

Full digital control

32 bits ARM cpu, smart control,

63V 82000UF capacitance to guarantee a continuous and stable welding output.

High quality electric components to guarantee the machine stability and longer using life.

(2021 NEW DESIGN)

(OLD DESIGN)

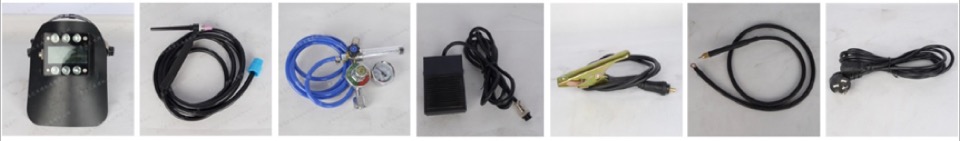

Accessories & parameters

Note: ATOM AWE-P1600 needs argon air protection, accessories not include argon air tank.

AWE-P1600 PARAMETERS

MODEL:

AWE-P1600

INPUT VOLTAGE:

AC220V

POWER OUTPUT:

1200W

POWER OUTPUT:

0.05 - 40KW

FREQUENCY:

WEIGHT:

TUNGSTEN ROD DIA.:

1 - 5HZ

15KGS

1.6MM

CURRENT RANGE:

MACHINE SIZE:

COOLING MODE:

2 - 350A

400*220*290MM

AIR COOLING
